RIB SPEC

Fully coded BAE Systems Pacific 24 MK4 RIB

Highlights

  • Fully coded BAE Systems Pacific 24 MK4 RIB

  • RIB has a stainless steel trailer so it’s available for commercial RIB charter hire not only in Cornwall, but anywhere in the UK or overseas.

  • Fuel contained in 2 x 300L Stainless Steel tanks giving a range of 400-500 miles.

  • RIB Coding; category 4 and 3 restricted up to 20 miles from safe haven and nighttime restrictions to 10 miles from safe haven.

  • Small commercial vessel certificate.

  • Light duty work boat certificate.

  • Mecal Unique No.M23MV0070085

About the RIB

The Pacific 24 MK4 RIB is proven in service with the UK Ministry of defence, police and overseas military and government organisations.

The Pacific 24 Mk4 is a versatile craft that offers a multi role capability to all users.

It features a New Suzuki 325 hp four stroke twin counterrotating propulsion and noise attenuation. Thus providing an outboard that is perfectly balances power and thrust with outstanding fuel-efficiency and  reliability all within a lightweight design.

Composite materials and a lighter engine have helped reduce the weight of the craft to preserve its maximum speed of 45 knots.

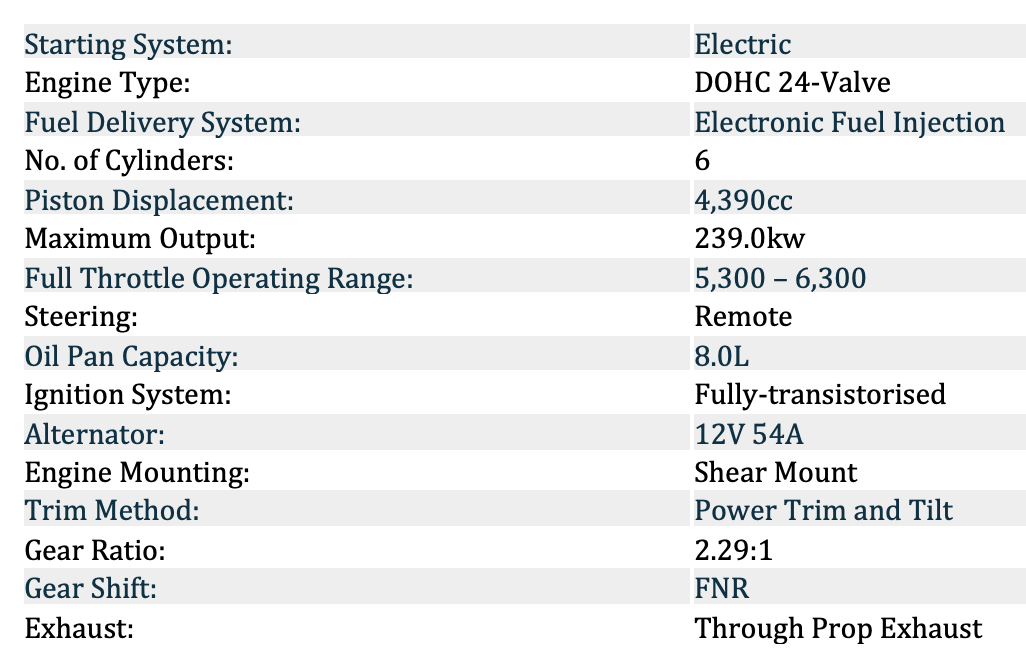

RIB engine specifications

RIB systems

  • Electrical and manual bilge-pumping system with high water-level bilge alarm.

  • Fuel contained in 2 x 300L Stainless Steel tanks giving a range of 400-500 miles.

  • Foam-filled under-deck tank, fitted with digital remote reading gauge and manual shut-off.

  • Access to tank through waterproof deck hatches.

  • Water separator/primary filter.

  • Fire detection and suppression systems with visual/audible display on console.

  • Full navigation systems By Ray Marine, Chart Plotter Raydar, bottom sounder.

Internal fit-out

  • Control console with integrated digital display units, emergency engine ‘kill’ switch, navigation equipment and steering wheel.

  • Hand-held fire extinguishers.

External fit-out

  • Aluminium Bimini led navigation lights, antenna and Towing point on transom and towline system at bow.

  • Deck drains through transom.

  • 8 x seats – four of which can be removed to provide additional work space or cargo capacity.

  • Provision for SOLAS stretcher can be provided on Request.

Inflatable compartmented collar

  • Heavy-duty collar constructed from Hypalon composite tube of 500mm diameter.

  • Seven compartments each with relief valve. Collar fitted with solid neoprene cladding, lifelines, paddle stowage, stowage pouches, reflective patches and bow towing eye.

  • The use of a ‘wineglass’ rail system means the collar is easily removable.

  • Tow-line release painter and toggle.

Electrical

  • SOLAS beacon

  • Marine VHF coastguard radio with DSC module.

  • Navigation lights.

  • Magnetic compass.

  • Shore supply socket on engine box for block heater/battery charging.

  • USB charging points

  • Twin batteries with charge splitter from engine alternator & Sola Panel.

  • Batteries can be parallel-connected for emergency engine-starting.

  • Two 12v DC watertight sockets on console and one in the forward locker area.

  • Console fitted with waterproof circuit breakers and instrumentation to IP65.

  • Waterproof searchlight 12v/55w.

Construction

Lightweight, carbon/e-glass epoxy resin-infused and fire-retardant hull and deck construction.

Length - 7.8 metres

Beam - 2.6 metres

Draught amidships - 0.55 metres

Typical maximum speed - 45 knots
